Magnetic Level Indicators

Magnetic Level Indicator/Magnetic Level Gauge/ Magnetic Float Level sensors involve the use of a permanent magnet sealed inside a float whose rise and fall causes the opening or closing of a mechanical switch, either through direct contact or in proximity of a reed switch. With mechanically actuated floats, the float is directly connected to a micro switch. For magnetic level sensors, chemical compatibility, temperature, specific gravity (density), buoyancy, and viscosity affect the selection of the stem and the float.

Renowned for quality and customer satisfaction in the industry of switches and boards, Mayur Instruments have gained immense recognition in India for a variety of Magnetic level indicators. Our Magnetic Level Indicators are available in different models, variants and specifications, designed to suit the requirement of various industrial applications. Our Magnetic level indicators are widely used in oil and gas, petrochemical, power generation, pharmaceutical and several other industries to display the exact indication. We ensure onsite product installation and maintenance of indicators at highly affordable costs.

MAGNETIC LEVEL INDICATORS FOR BI-COLOUR TYPE (SIDE MOUNTED)

Model No. : MI - 03

The "Mayur Instruments" make Magnetic Level Indicator (Side Mounted). It is a reliable device for direct reading the level of liquid. It is a simplest form of level indicator. These level indicators find wide application for level measurement in process tanks, batching tanks / storage / overhead etc.

specification

• Connection: Flanged ASA 150 R FRange: 300 mm TO 6000 mm
• Press Rating: 25 Kg/cm2
• Temp. Rating: 150ºC
• Calibration: cms / mm / Inches
• Material of Wetted Parts: S.S. 304/S.S. 316/P.P.

Side Mounted Magnetic Level Indicators for Red Follower

Model No. : MI - 02

Cylindrical's float with powerful magnet moves with level inside metallic chamber. Level is indicated by a weighted magnetic capsules that follows the float movement. Capsule guide in filled glass tube attached externally to chamber. Excellent visibility because of lens action of liquid filled glass & absolute safety because of non fragile metal chamber.

specification

• Connection: Flanged ASA 150 R F
• Range: 300 mm TO 6000 mm
• Press Rating: 25 Kg/cm2
• Temp. Rating: 150ºC
• Calibration: cms / mm / Inches
• Material of Wetted Parts: S.S. 304/S.S. 316/P.P.

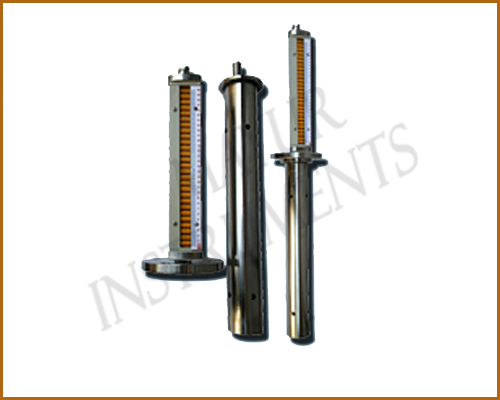

TOP MOUNTED MAGNETIC LEVEL INDICATORS

MODEL NO. : MI - 04

Top Mounted Magnetic Level Indicators Top Mounted Magnetic Level Indicators are particularly useful for continuous level measurement of liquid which coagulate if stagnant, liquids with high viscosity. Liquids under high pressure & for those liquids which are corrosive & hazardous in nature. We can also provide you with bi-colour.

specification

• Connection: Flanged ASA 150
• Range: Up to 500 to 5000 mm
• Press Rating: 20 Kg/cm²
• Temp. Rating: 0ºC to 200ºC
• Calibration: cms / mm / Inches
• Material of P.P.: S.S. 304/S.S.316OptionalWetted Parts
• FlangesMinimum 4" NBASA 150 #
